Imagine a tiny heat signature that could warn you about a big problem. That’s exactly what an infrared camera can do for electrical systems! Think of it like a special pair of glasses that lets you see heat. When electrical wires or connections get too hot, it’s a sign something isn’t working right. This could lead to power outages or even dangerous fires.
But choosing the best infrared camera for these inspections can feel like a puzzle. So many cameras have different features, and it’s hard to know which one is right for your needs. You want a camera that’s easy to use, shows you clear images, and helps you find problems quickly. Not all cameras are created equal, and making the wrong choice can waste your money and time.
In this blog post, we’re going to break down what makes a great infrared camera for electrical inspections. We’ll help you understand the important features to look for, so you can pick the perfect tool for the job. By the end, you’ll feel confident in your choice and ready to keep your electrical systems running safely and smoothly.

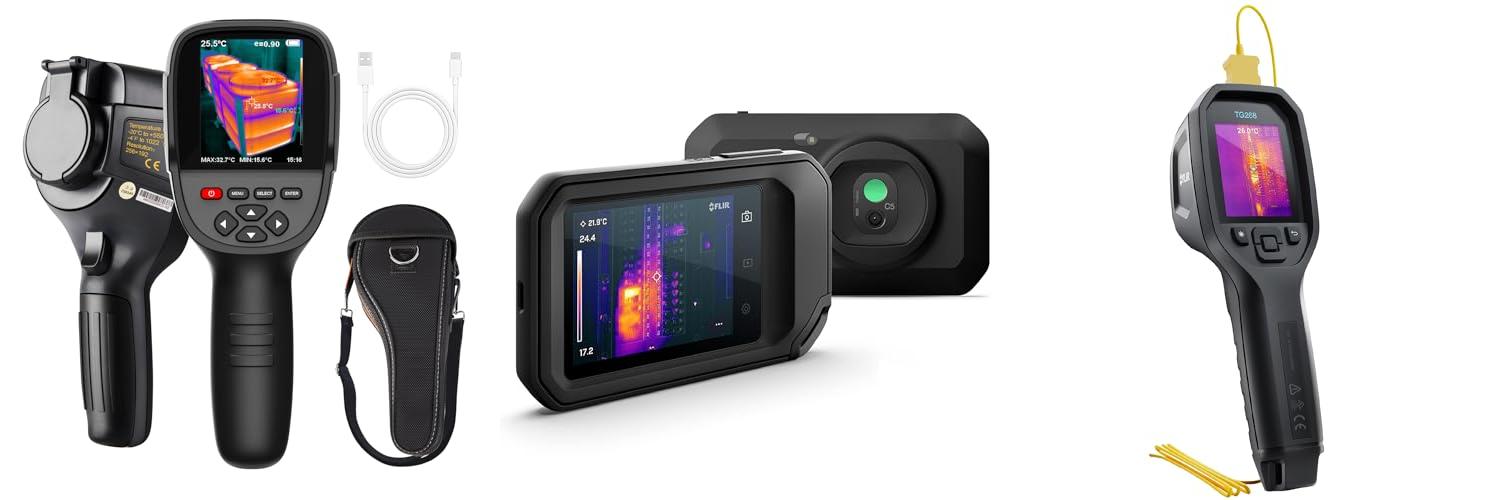

Our Top 5 Infrared Camera For Electrical Inspections Recommendations at a Glance
Top 5 Infrared Camera For Electrical Inspections Detailed Reviews
1. GOYOJO 256×192 Thermal Imaging Camera with Dual-Light Fusion
Rating: 8.8/10
The GOYOJO GW256 thermal imaging camera is a powerful tool for anyone needing to see heat. It helps you find problems in things like your home’s heating and cooling systems, electrical wires, or machines. This camera shows you where things are too hot or too cold, so you can fix them before they become bigger issues.
What We Like:
- It takes clear pictures with its 256×192 resolution.
- The Dual-Light Fusion mixes regular and heat pictures, making it easy to see what’s going on.
- You can save your findings as photos (jpg) or videos (mp4) and easily share them with a computer.
- It quickly finds the hottest and coldest spots, helping you fix problems fast.
- This camera works for many jobs, like checking houses, electrical systems, and even farms.
- It’s built tough with a protective sensor, screen cover, and lens cover, so it will last.
- The battery lasts a long time, letting you work without constant recharging.
What Could Be Improved:
- The temperature range might be too limited for some extreme industrial uses.
- While good for many tasks, it may not have all the advanced features of much more expensive professional units.
This GOYOJO thermal camera is a reliable way to spot temperature changes. It offers clear images and accurate readings, making it a smart choice for many inspection needs.
2. FLIR C5 Compact Thermal Imaging Camera with Wifi: High Resolution Infrared Imager for Inspection
Rating: 9.3/10
The FLIR C5 is a powerful, handheld thermal camera that helps you see the unseen. It measures temperatures from a chilly -20°C all the way up to a hot 400°C. This camera is built to find problems fast. It uses special technology to make thermal images much clearer. You can easily save and share your findings with others. FLIR also backs this camera with a great warranty.
What We Like:
- Quickly spots hidden issues and saves you time diagnosing problems.
- The 160 x 120 resolution (that’s 19,200 pixels!) gives you a clear thermal picture.
- Patented MSX technology adds visual details to thermal images, making them easier to understand.
- Easily upload images to the FLIR Ignite cloud and create professional reports to send to clients.
- Comes with a strong 2-10 year warranty from FLIR, including 2 years for parts and labor, and an impressive 10 years for the detector.
What Could Be Improved:
- While it’s great for many tasks, some very demanding professional applications might need higher resolution.
- The 400°C maximum temperature might not be enough for certain extreme industrial uses.
The FLIR C5 is an excellent tool for anyone needing to inspect electrical systems, mechanical equipment, buildings, or HVAC units. Its user-friendly design and powerful features make it a smart investment for professionals.
3. FLIR TG268 Thermal Imaging Camera with Spot IR Super Resolution 320×240 (160×120 Native IR) and Bullseye Laser: Commercial Grade Infrared Camera for Building Inspection
Rating: 8.8/10
The FLIR TG268 is a powerful thermal imaging camera designed for tough jobs. It helps you see heat problems in buildings, HVAC systems, and electrical setups. This camera uses special technology to show you more detail, making it easier to find what’s wrong.
What We Like:
- It has Super Resolution technology that makes the images clearer and sharper, showing more detail than a regular camera.
- The MSX feature adds visual details to the thermal pictures, making them easier to understand.
- The bullseye laser pointer shows you exactly where you’re measuring, so you can find problems faster.
- It’s built tough and can handle drops. It’s also protected from dirt and dust.
- FLIR offers a great warranty: 2 years on the camera and 10 years on the detector.
What Could Be Improved:
- The native IR resolution is 160×120, which is lower than the upscaled resolution.
- While it’s rugged, some users might prefer even more advanced features for highly specialized industrial use.
The FLIR TG268 is a reliable tool for inspections. It provides clear images and helpful features to make your work easier and more effective.
4. GOYOJO 192×192 IR Resolution Thermal Imaging Camera for Android – Water Leak Detection
Rating: 8.7/10
Turn your Android smartphone into a powerful thermal camera with the GOYOJO 192×192 IR Resolution Thermal Imaging Camera. This compact device easily plugs into your phone’s USB-C port, instantly transforming it into a tool for spotting hidden problems. It’s perfect for detecting water leaks, checking your HVAC system, inspecting electrical issues, and even for automotive repairs and general home inspections. The GOYOJO camera makes professional-grade thermal imaging accessible for everyone, from DIY enthusiasts to seasoned professionals.
What We Like:
- Easy Setup: Just plug it into your Android phone’s USB-C port with the THG Start app. No batteries or complicated pairing needed.
- Clear Images: The 192×192 resolution and 12μm sensor capture detailed thermal images, helping you find problems like insulation gaps or electrical hotspots.
- Wide View: The 50° field of view lets you scan large areas like ceilings, floors, and walls without moving much.
- Wide Temperature Range: Detects temperatures from -4°F to 752°F (-20°C to 400°C), useful for fire hazards and overheating parts.
- Accurate Readings: Offers ±2% accuracy for critical diagnostics on fuse boxes, motors, and AC systems.
- Portable Design: It’s super small (1.77 x 0.43 x 1.34 inches) and lightweight, so you can carry it anywhere.
- Versatile Use: Great for home inspections, leak detection, car repairs, industrial jobs, and even seeing in the dark.
What Could Be Improved:
- iPhone Incompatibility: It does not work with iPhone 15 or 16 series phones.
This GOYOJO thermal camera is a fantastic, user-friendly tool for anyone who needs to see the invisible. It brings advanced thermal imaging capabilities right to your fingertips.
5. Kalliber Thermal Imaging Camera – 320 x 240 Screen Resolution
Rating: 9.4/10
The Kalliber ViewPro Thermal Imaging Camera is a powerful tool for anyone needing to see the invisible world of heat. It helps you find problems you can’t see with your eyes, making inspections easier and more effective. From checking your home’s insulation to finding electrical issues, this camera gives you a clear picture of temperature differences.
What We Like:
- The screen shows very clear thermal images, so you can easily spot problems.
- It has a long-lasting battery that works for up to 15 hours, so you don’t need to charge it often.
- You can save over 5,000 pictures right on the camera.
- It has different color options to help you see heat better.
- You can set alarms for high or low temperatures.
- The zoom feature lets you look closely at small areas.
- It’s tough and can handle being dropped or exposed to dust and water.
- It comes with everything you need and has a good warranty.
What Could Be Improved:
- The IR camera resolution is 160 x 120, which is lower than the screen resolution.
This camera is a reliable choice for many different jobs. It offers great features and durability for its price.
Your Guide to Choosing an Infrared Camera for Electrical Inspections
Why Use an Infrared Camera for Electrical Work?
Electrical problems can be sneaky. Sometimes, wires get too hot. This heat can cause fires. Infrared cameras see heat. They help you find hot spots before they become big problems. This guide helps you pick the best camera for your needs.
Key Features to Look For
1. Resolution (How Clear the Picture Is)
Higher resolution means a clearer picture. A clearer picture helps you see small hot spots. Look for cameras with at least 160×120 pixels. Better cameras have 320×240 pixels or even more.
2. Temperature Range (How Hot or Cold It Can See)
Electrical systems can get very hot. Your camera needs to see these high temperatures. Most cameras can see from -4°F to 1200°F (-20°C to 650°C). Make sure the range fits what you expect to find.
3. Thermal Sensitivity (NETD)
This tells you how well the camera can see small temperature differences. A lower number is better. It means the camera is more sensitive. Look for a NETD of 50mK or less. This helps you spot even small hot spots.
4. Field of View (FOV)
FOV is how wide an area the camera can see. A wider FOV lets you see more at once. A narrower FOV lets you zoom in on details. Think about what you will be inspecting most often.
5. Durability and Build Quality
You might use your camera in tough places. It should be strong. Look for cameras with good drop resistance. Water and dust resistance (IP rating) is also a plus.
6. Battery Life
You don’t want your camera to die mid-job. Check how long the battery lasts on a single charge. Some cameras have swappable batteries, which is handy.
7. Software and Reporting
Good software makes it easy to save, analyze, and share your findings. Look for cameras that come with easy-to-use software for reports.
Important Materials and Build
Most infrared cameras have a tough plastic casing. This protects the sensitive parts inside. The lens is usually made of special materials like Germanium. This material lets infrared light pass through. A rubber grip makes the camera easier to hold.
Factors That Improve or Reduce Quality
Improving Quality
- High Resolution: A sharper image helps you see more details.
- Good Thermal Sensitivity: This helps you find small temperature changes.
- Accurate Temperature Readings: The camera must give correct numbers.
- Easy-to-Use Interface: A simple menu makes it faster to work.
Reducing Quality
- Low Resolution: Blurry images make it hard to find problems.
- Poor Thermal Sensitivity: You might miss important hot spots.
- Inaccurate Readings: Wrong temperatures can lead to bad decisions.
- Difficult Software: If the software is hard to use, it slows you down.
User Experience and Use Cases
Ease of Use
A good infrared camera is easy to pick up and use. The buttons are clear. The screen is bright. You can quickly take pictures and save them. Some cameras have touchscreens, which many users like.
Common Use Cases
- Checking Electrical Panels: Find loose connections or overloaded circuits.
- Inspecting Motors and Transformers: Detect overheating components.
- Finding Faulty Wiring: Spot hot wires hidden in walls.
- Preventive Maintenance: Catch problems early before they cause downtime.
- Residential and Commercial Building Inspections: Ensure electrical safety.
Frequently Asked Questions (FAQ)
Q: What is the most important feature in an infrared camera for electrical inspections?
A: Thermal resolution and temperature range are very important. They help you see hot spots clearly and accurately.
Q: Do I need a very high-resolution camera?
A: A good resolution helps, but you don’t always need the highest. A resolution of 160×120 or 320×240 is often enough for most electrical work.
Q: How do I know if the temperature readings are accurate?
A: Look for cameras from reputable brands. They often have better calibration. You can also check reviews for comments on accuracy.
Q: Can I use any infrared camera for electrical inspections?
A: While many infrared cameras can be used, those designed for industrial or electrical inspections have better temperature ranges and sensitivity for this specific job.
Q: What is NETD, and why is it important?
A: NETD stands for Noise Equivalent Temperature Difference. It measures how small a temperature difference the camera can detect. A lower NETD means better sensitivity, which is good for finding small hot spots.
Q: How does Field of View (FOV) affect my inspection?
A: A wider FOV lets you see a larger area at once. A narrower FOV allows you to zoom in on specific components for more detail.
Q: Are infrared cameras difficult to learn how to use?
A: Most modern cameras are designed to be user-friendly. Simple menus and clear displays make them easy to operate.
Q: What kind of battery life should I look for?
A: Aim for at least 2-3 hours of continuous use. Cameras with easily swappable batteries offer more flexibility.
Q: What is an IP rating, and why is it useful?
A: An IP rating tells you how well the camera is protected against dust and water. A higher IP rating means better protection in harsh environments.
Q: Can these cameras see through walls?
A: No, infrared cameras cannot see through solid walls. They detect heat radiating from surfaces.
In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.
If you have any questions or feedback, please share them in the comments. Your input helps everyone. Thank you for reading.
